The 20mm Drilling Machine is a powerful type of drilling machine that performs drilling in metals and wood, among other hard substances. This machine can bore holes of a diameter of 20mm and is an extremely common tool used in industrial workshops, in the manufacturing unit, in construction, and by engineers too. It has a large motor, a strong body and a steady base, which makes it work efficiently even when heavily used. Designed as a precise and powerful machine, the 20mm drilling machine has a great deal of torque and performance stability. Such a machine is usually appurtenanced with high-tech features such as adjustable speed control, a depth gauge, and a precision chuck system that gives the possibility to have a quick bit change and secure grip. The stabilised column and table structure offers a very good support and alignment system wherein the vibration is reduced and drilling quality thus enhanced. It provides clean, accurate and deep holes with minimal effort, whether on mass production work or on individual projects work. The 20mm Drilling Machine is durable, efficient, and long-lasting, with advantages of being effective where the professional machinists and fabricators use it. It can be operated by laymen as well as the skilled traders, because it is built rugged and it has easy to use controls. On the whole, it is a piece of must have equipment in any installation with high-capacity drilling needs as well as accuracy requirements.

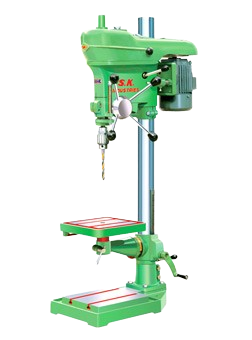

Machine with EN 8 spindle & graded casting gear

20 MM DRILL MACHINE MANUFACTURER

TECHNICAL SPECIFICATION
Model 20 SBR 20 SFR 20 SPR
SPECIFICATION 20 SBR 20 SFR 20 SPR
Drilling Capacity in steel 20mm 20mm 20mm
No. of Spindle Speed 86-154-260-460-617-1100-1880-3360 86-154-260-460-617-1100-1880-3360 86-154-260-460-617-1100-1880-3360
Spindle nose Taper Morse Taper No.2 Morse Taper No.2 Morse Taper No.2
pindle centre to column 203 mm 203 mm 203 mm
Spindle Travel 130 mm 130 mm 130 mm
Maximum distance Chuck to Table 340 mm 635 mm 940 mm
Maximum distance Chuck to Base 645 mm 950 mm 1240 mm
Working surface of Base 225 mm x 250 mm 225 mm x 250 mm 225 mm x 250 mm
Working surface of Table 275 mm x 275 mm 275 mm x 275 mm 275 mm x 275 mm
Column Diameter 73 mm 73.8 mm 73.8 mm
Base of Machine 490 x 330 mm 490 x 330 mm 490 x 330 mm
Overall Dimensions of Machine 1170 mm x 390 x 710 mm 1170 mm x 390 x 710 mm 1170 mm x 390 x 710 mm
Motor Speed 1440 R.P.M 1440 R.P.M 1440 R.P.M
Motor 3 Phase induction A.C. 0.55 KW / 1 HP 0.55 KW / 1 HP 0.55 KW / 1 HP
Weight of machine 96 kg 105 kg 115 kg

Standard Accessories : Pulley for motor & Drift Key

Extra Accessories:  1 HP 1440 RPM Electric Motor, Drill Chuck, Chuck Arbour, V-belt switch, Drill Vice & Fine Feed Attachment.
