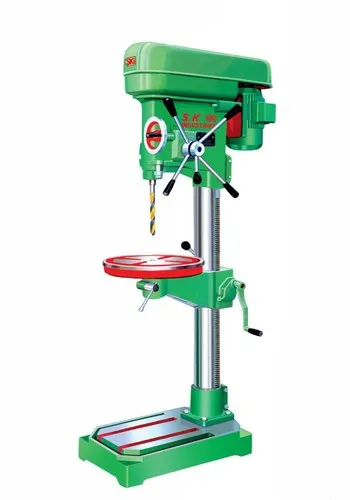

Heavy Duty Drill Machine Manufacturer
Heavy Duty Drill machine is a powerful and high-performance drill machine designed to tackle heavy drilling requirement in the industrial setting. This machine is constructed to be powerful, tough and also precise to create holes with a big diameter in a challenging material like steel, cast iron as well as other hard metals. It finds a lot of applications in the fields such as construction, ship construction, metal fabrication, mining and heavy engineering where normal drilling machines might not be sufficient in terms of power and capability. With a powerful motor and the strong spindle mechanism it has made the heavy duty drill machine stable and consistent with long hours of operation. It commonly has a fixed column or frame, an adaptable work table, and different rates to assist in drilling different materials and different demands. The machine has its design whereby the structure reduces vibration and improves control by the operator, resulting in holes that are accurate and clean. Flexibility is one of the outstanding characteristics of a heavy duty drill machine. Besides the regular drilling, it may also be used in other functions like tapping, countersinking, and boring when using the correct attachments. It has a heavy structure and advanced technology, which qualifies it to both individual component drilling and batch production systems. A heavy duty drill machine is a valuable tool to industry that depends on strength, reliability and uninterrupted operation. It increases speed, manual work, and they are precise in their functions, and therefore they are most used in large industries as well.

Specification of Heavy Duty Drill Machine Manufacturer
Capacity in steel | 25.4 mm (32 mm in C.L) |
No. of Spindle Speed | 8 (105 RPM to 1100 RPM) |
Spindle nose Taper | Morse Taper No.3 |
Spindle centre to column | 244 mm |
Spindle Trave | 150 mm |
Size of Table | 425 mm Diameter |
Maximum distance between spindle to Table | 673 mm |
Maximum distance spindle to Base | 1060 mm |
Working Surface of Base | 425 mm x 330 mm |
Column Diameter | 115 mm |
Base Of Machine | 660 mm x 420 mm |
Overall Dimensions of Machine | 1778 x 860 x 495 mm |
Motor Speed | 0.93 KW , 0.55 KW |
Motor 3 Phase, induction, A.C. | 1400 RPM / 700 RPM |
Weight of machine(Approx.) | 330 kg. |
